Triggers

Triggers change block properties or options based on specific conditions. Each block can include a list of triggers defined as TriggerItem objects.

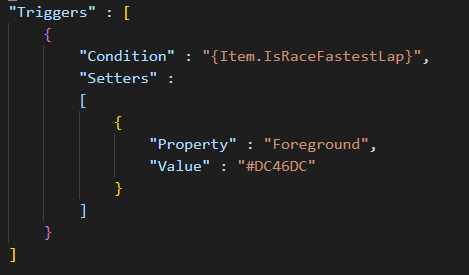

TriggerItem

Property	Type	Required	Description
Condition	any	Yes	Condition under which the trigger activates. If ConditionValue is not set, treated as boolean (0 = false, >0 = true). If ConditionValue is set, Conditon can be any type/value (it will be forcibly converted to string type during comparison).
ConditionValue	any	No	Value to compare against Condition. Both are converted to strings for comparison.
ConditionAnd	any	No	Additional condition (implement AND logic). If ConditionAndValue is not set: it is assumed that bool value is used (can be number type, 0 = false, >0 = true). If ConditionAndValue is set, ConditonAnd can be any type/value (it will be forcibly converted to string type during comparison)
ConditionAndValue	any	No	Value to compare against ConditionAnd.
ConditionOr	any	No	Additional condition (OR logic). Treated as boolean if ConditionOrValue is not set.
ConditionOrValue	any	No	Value to compare against ConditionOr.
Setters	TriggerPropertyItem[]	No	List of property setters to apply when the trigger is active.
TriggerName	string	No	Defines the name of the trigger for external reference.
Trigger	string	No	Specifies the name of an external trigger to use.

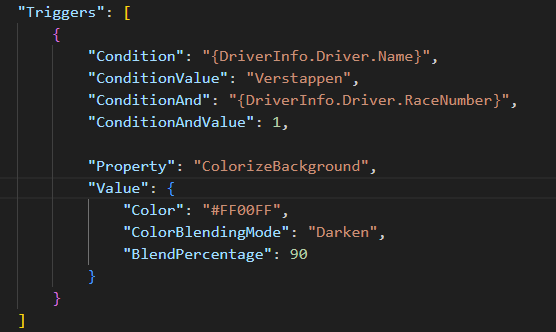

TriggerPropertyItem

Property	Type	Description
Property	string	Full path to the block property (e.g., Foreground or TextOptions.Foreground).
Var	string	Name of the block variable to override. Automatically added if not defined.
ComponentVar	string	Name of the component variable to override. Automatically added if not defined.
Value	object	Value to apply. Can be a primitive, an options object (e.g., ImageOptions), or ColorizeOptions.

The TriggerPropertyItem structure primarily overrides block properties but can also override block or component variables. To do this, define Var or ComponentVar instead of Property. The Value applies to the specified target.

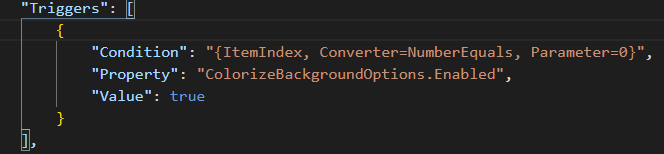

If only one property needs to be overridden, the Setters list can be omitted. Specify Property (or Var/ComponentVar) and Value directly in the trigger object.

External Triggers

Triggers can be defined in external files and referenced by name or path, similar to components and styles. This allows reusing the same trigger in different places.

When a trigger is referenced, the renderer searches for it in the resources, copies it, and substitutes it into the calling location.

External triggers are stored in the Triggers folder at the theme, layout, or layer level. Custom internal folder hierarchies are allowed.

There are two formats for JSON files describing triggers:

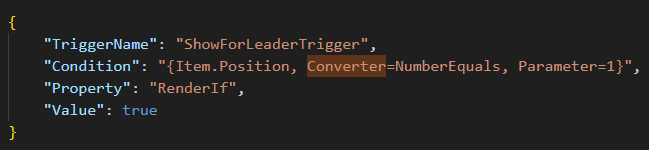

1. One file containing one trigger:

{
  "TriggerName": "ShowLapsTrigger",
  "Condition": "..."
}

1. One file containing multiple triggers:

[
  {
    "TriggerName": "ShowLapsTrigger",
    "Condition": "..."
  },
  {
    "TriggerName": "ShowWeatherTrigger",
    "Condition": "..."
  }
]

In the first case, the root object is the TriggerItem. In the second case, the root is an array of TriggerItem objects.

There are two ways to refer to a specific trigger:

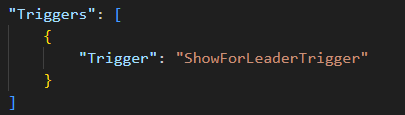

• Specify the trigger name (defined in the TriggerName property):

{
  "Trigger": "ShowLapsTrigger"
}

• Specify the relative file path and file name (without extension). This requires the file to contain a single trigger. The path must start with a slash:

{
  "Trigger": "/headerTriggers/ShowLapsTrigger"
}
