Public Properties¶

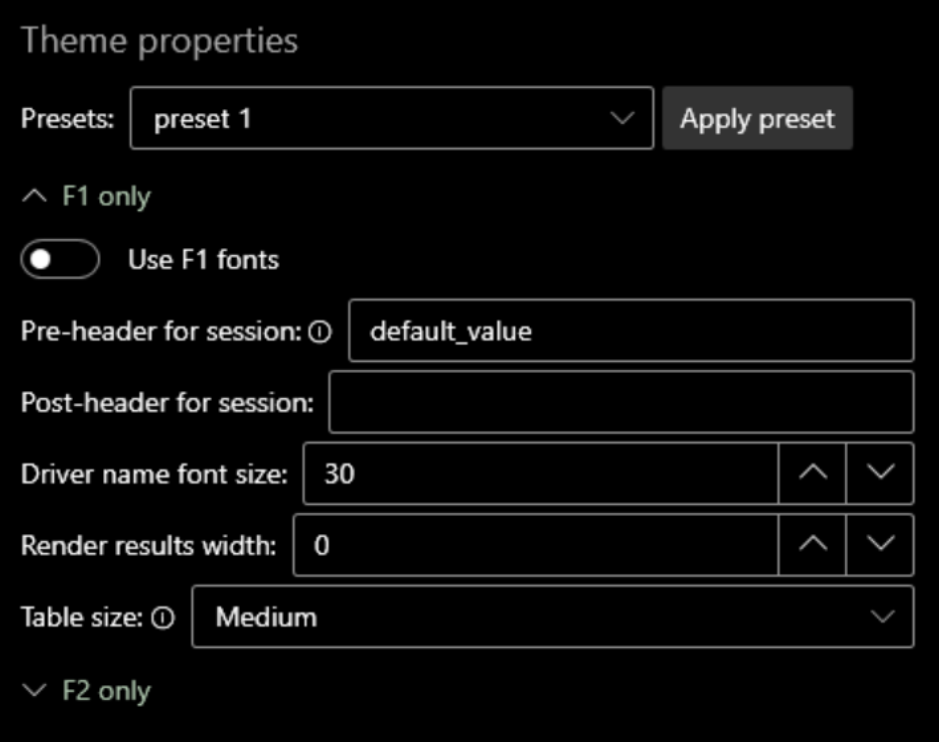

Public properties allow end-users to modify the theme's behavior through a user-friendly UI. Each custom property becomes a variable with a name and a value.
To define public properties, create a public_properties.json file in the %theme_folder%/globals/ directory.
Configuration File Structure¶

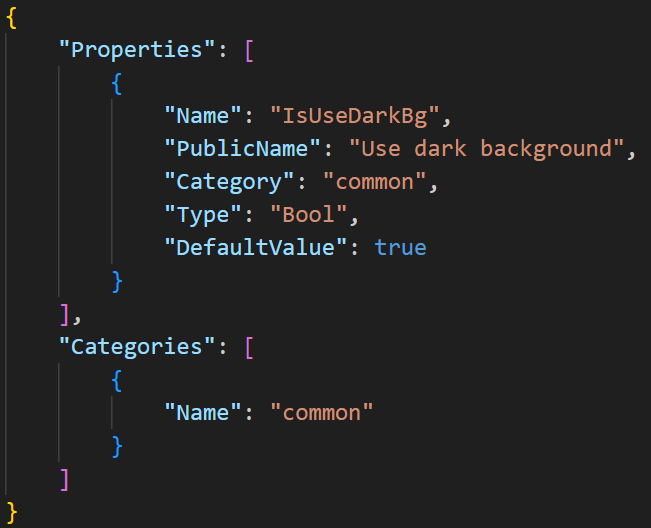

The public_properties.json file consists of lists for properties, categories, and presets.
Root Object¶
| Property | Type | Required | Description |
|---|---|---|---|
Properties |
PublicProperty[] |
Yes | List of public properties. |
Categories |
PublicPropertiesCategory[] |
No | List of property categories. |
Presets |
PublicPropertiesPreset[] |
No | List of predefined property sets. |
PublicProperty¶
| Property | Type | Required | Description |
|---|---|---|---|
Name |
string |
Yes | Variable name. |
PublicName |
string |
Yes | Name displayed in the UI. |
Type |
enum |
Yes | Variable type: Bool, Integer, String, Float, Enum. |
DefaultValue |
object |
No | Default value of the property. |
Description |
string |
No | Description of the property. |
Category |
string |
No | Category name the variable belongs to. |
MinimumValue |
int |
No | Minimum value for Integer and Float types. |
MaximumValue |
int |
No | Maximum value for Integer and Float types. |
EnumValues |
string[] |
No | List of allowed values for Enum type. |
PublicPropertiesCategory¶
| Property | Type | Required | Description |
|---|---|---|---|
Name |
string |
Yes | Category name displayed in the UI, spaces are allowed |
Order |
int |
No | Display order of the category. |
PublicPropertiesPreset¶
| Property | Type | Required | Description |
|---|---|---|---|
Name |
string |
Yes | Preset name displayed in the UI, spaces are allowed |
DefinedProperties |
Dictionary<string, object> |
Yes | Key-value pairs of property names and their values. |

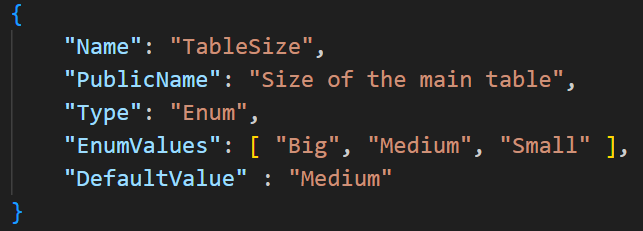

Enum Properties¶
If users need to select a value from a predefined list, use the Enum type. The selected value is stored as a string.
Categories¶
Categories group specific sets of properties. Use the Category property in the PublicProperty object to map a property to a category. Unmapped properties appear at the beginning of the list.

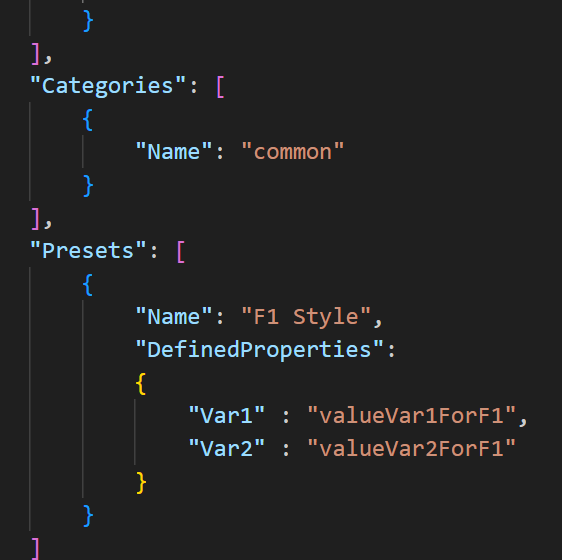

Presets¶
Presets allow users to quickly define values for multiple properties at once. Add a preset to the Presets collection, specify a name, and set values using the DefinedProperties dictionary.
