Components

Components allow reusing the same block configuration across different places, layers, or layouts. Fundamentally, a component is a block. It can contain any type of block (text, image, table, etc.) and any complex internal block hierarchy if the root block is a block-container.

When the code references a component, the renderer locates the component in the resources, copies it entirely, and substitutes it into the calling location.

Component Location

Components can be defined in external files or directly within the layer code.

External Files

Components can be stored in a components folder at the theme, layout, or layer level. Any custom internal folder hierarchy is allowed.

There are two formats for JSON files describing components:

1. Single Component File

One file (.json) contains one component. The component block itself is the JSON root.

{
  "ComponentName": "MainHeader",
  "BlockType": "text"
}

2. Multiple Components File

One file (.json) contains an array of components.

[
  {
    "ComponentName": "MainHeader",
    "BlockType": "text"
  },
  {
    "ComponentName": "Footer",
    "BlockType": "stack"
  }
]

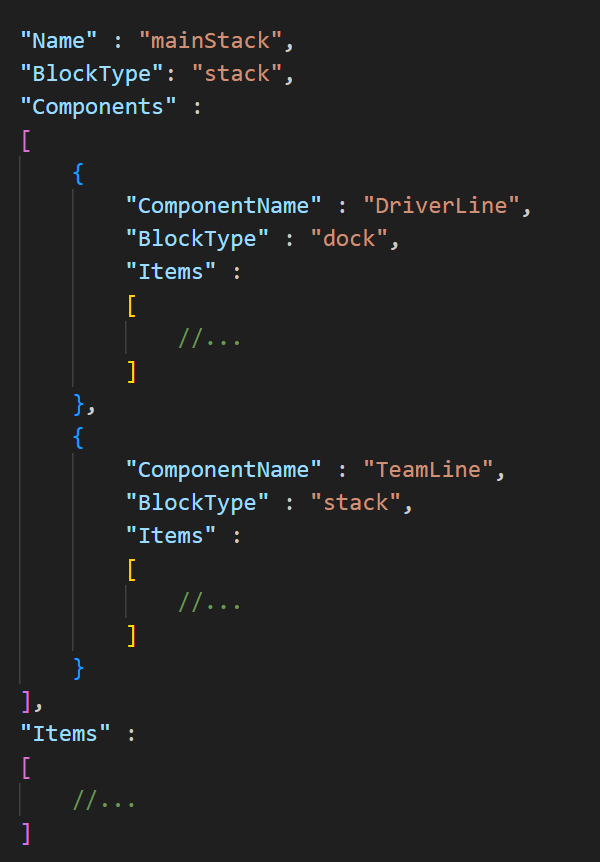

Inline Definition

Block-containers (stack, dock, itemstack, canvas, table) have a Components property. This property allows defining an array of components available to all children down the hierarchy.

Component Definition Properties

When defining a component (either in a file or inline), the following properties apply to the root block of the component.

Property	Type	Required	Description
ComponentName	string	Yes	Unique name for the component. Required unless the component is a single file referenced by path.

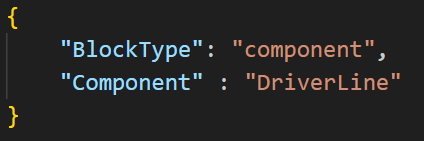

Component Usage

To use a component, define a block with BlockType set to component and specify the component name or path.

Property	Type	Required	Description
BlockType	string	Yes	Must be set to component.
Component	string	Yes	The name of the component or the relative file path.
Vars	object	No	Dictionary of variables to substitute within the component.

Referencing Methods

1. By Name

Specify the ComponentName defined in the component source.

{
  "BlockType": "component",
  "Component": "Footer"
}

2. By File Path

Specify the relative file path and file name (without extension). This requires the file to contain a single populated component. The path must start with a slash /.

{
  "BlockType": "component",
  "Component": "/headers/mainHeader"
}

Component Resolution Logic

When the renderer encounters a block of type component (and no direct file path is provided), it searches for the component in the following order:

1. Checks the Components property of the immediate parent block.
2. Checks the Components property of the grandparent block, continuing up the hierarchy.
3. If not found in the block hierarchy, the renderer checks external files.
4. Searches in %layer_folder%/components/subfolder (if the layer is in a separate folder).
5. Searches in %layout_folder%/components/folder.
6. Searches in %theme_folder%/components/.
7. If the component is not found, the renderer generates an error.

Component Variables

Components can define internal variables using angle brackets < >. This allows dynamic content substitution when the component is used.

Basic Substitution

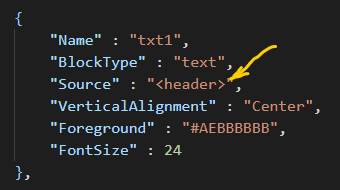

To define a variable within a component, use the syntax <variable_name> in any property value.

In this example, <header> is a variable. When the component is used, define the value for this variable using the Vars property inside ComponentOptions.

The renderer replaces <header> with the string "DRIVER OF THE DAY". The variable name in Vars must exactly match the text inside the brackets.

Expression Substitution

If a component needs to use an expression but the data object is not known in the component's context, use the "dot trick".

Syntax: <{expression}>

The dot inside the expression within angle brackets changes the substitution logic. The renderer only replaces the left side of the expression (relative to the first dot).

Example:

Component definition: <{data_object.Value}>

Usage configuration: "Vars": { "data_object": "Item" }

Result: {Item.Value}

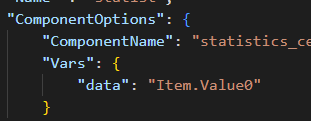

Practical Scenario:

1. Usage Context: The component is invoked where Item is the relevant data object.



2. Component Context: The component defines a generic variable data.



The renderer replaces the variable (data) with the value declared in Vars (Item.Value0).

• Original Component Expression: <{data.Value}>
• Variable Mapping: data -> Item.Value0
• Final Expression: {Item.Value0.Value}

The final expression combines the part declared where the component is invoked (left side) and the part declared in the component itself (right side).
