Block Types and Block Options

Individual properties required for a specific type of block are placed in separate objects called Block Options (e.g., ImageOptions). It is not always necessary to specify this object if default values are sufficient.

The following sections describe properties for specific block options.


BlockType: image BlockOptions: ImageOptions

Used to display an image.

Property	Type	Description
Path	string	Specifies the data object or path to the image file (.png, .jpg, .jpeg).
DefaultPath	string	Used if retrieving an image from Path fails.
HorizontalAlignment	enum	Options: Left, Center, Right.
VerticalAlignment	enum	Options: Top, Center, Bottom.
Opacity	int	Opacity level.
Rotation	int	Rotates the image clockwise around its center. Supports values beyond -360/360.

Path Specification

The Path property (or Source property of the block) can be specified as:

Relative path: e.g., separators/separator_red.png. Specifies the full path relative to the images folder in the theme root (or layout/layer).

Text

BlockType: text BlockOptions: TextOptions

Used to display text.

Property	Type	Description
Text	string	The text content to display.
FontName	string	Font family. Defaults to global variable FontNameDefault if empty.
FontSize	int	Font size. Defaults to global variable FontSizeDefault if empty.
FontStyle	enum	Options: Regular, Bold, Italic, BoldItalic. (Experimental).
Foreground	color	Text color. Defaults to global variable ForegroundDefault if empty.
TextAlignment	enum	Options: Start, End, Center. (Experimental).
HorizontalAlignment	enum	Options: Left, Center, Right.
VerticalAlignment	enum	Options: Top, Center, Bottom.
LineSpacing	int	Spacing between lines.
Wrap	bool	Enables text wrapping. (Experimental). To make the text wrap, it may need to force the width of the text block. Dev in progress.
Rotation	int	Rotates text clockwise around its center.
ColorizeRating	ColorizeRatingOptions	Sets foreground color based on rating value.

ColorizeRatingOptions

Property	Type	Description
IsEnabled	bool	Enables or disables the block.
Level	int	Value (0-100) determining the color.
GradientStops	List<GradientStop>	List of gradient stops for custom color assignment. If not specified, default values are used.

GradientStop

Property	Type	Description
Color	color	Specific color override.
Offset	int	Offset value (0-100).

Stack and Dock

BlockTypes: stack, dock BlockOptions: PanelOptions

Container blocks that arrange nested blocks.

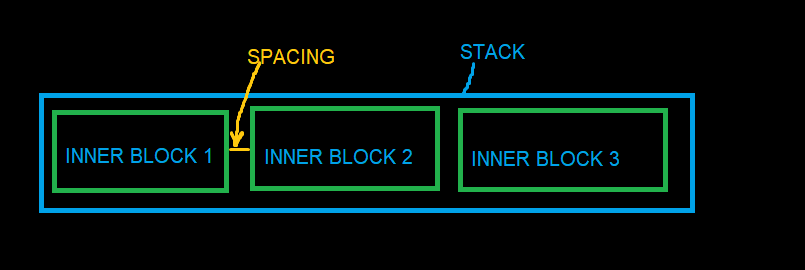

Stack

Arranges nested (inner) blocks sequentially.

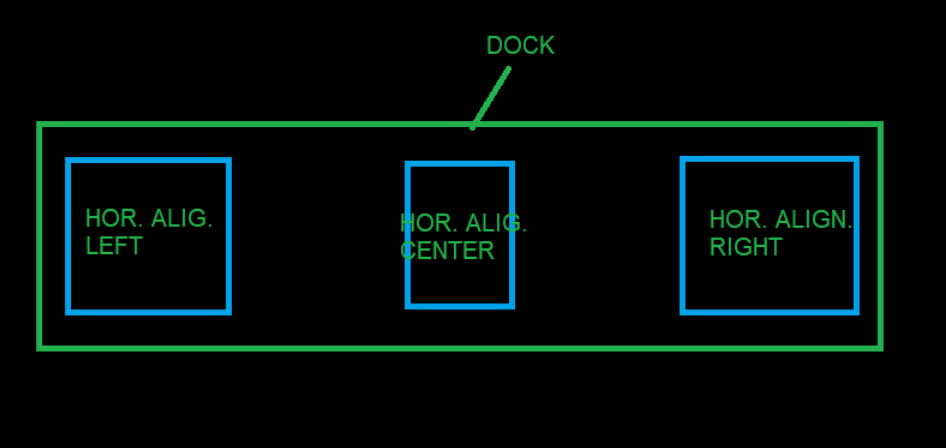

Dock

Similar to Stack, with the following differences:

• By default, it fills all available space (StretchWidth or StretchHeight is true, depending on Orientation).
• If inner blocks specify alignment, Dock uses this to dock them to the sides.
• Only one inner block can specify center alignment.

PanelOptions Properties

Property	Type	Description
Orientation	enum	Options: Horizontal, Vertical.
HorizontalDirection	enum	Options: LeftToRight, RightToLeft.
VerticalDirection	enum	Options: TopToBottom, BottomToTop.
Spacing	int	Spacing in pixels between inner blocks.

ItemStack

BlockType: itemstack BlockOptions: ItemStackOptions, PanelOptions

Similar to Stack, but inner blocks are generated automatically based on a data collection. The Items property is ignored.

Property	Type	Description
ItemSource	string	Data access expression for the collection/list.
ItemTemplate	block	Template for inner blocks.
SortMember	string	Property name for sorting the collection. Can be data access expression.
OrderBy	string	Property name for sorting (supports OrderBy2, OrderBy3).
OrderByDescending	string	Property name for descending sort (supports OrderByDescending2, 3).
FilterMember	string	Property name for filtering the collection. Can be data access expression.
FilterMemberValue	string	Value to filter by.
Reverse	bool	Reverses the collection order.
Limit	int	Limits the number of items.
IndexStart	int	Starting index of the collection.
IndexEnd	int	Ending index of the collection.
TakeItemIndex	int	Selects a single item by index (will be consist only of one item by specified index).
TakeItemsFirst	int	Selects the first N items.
TakeItemsLast	int	Selects the last N items.
CollectionPart	string	Specifies a part of the collection (e.g., "1/3" for the first third).

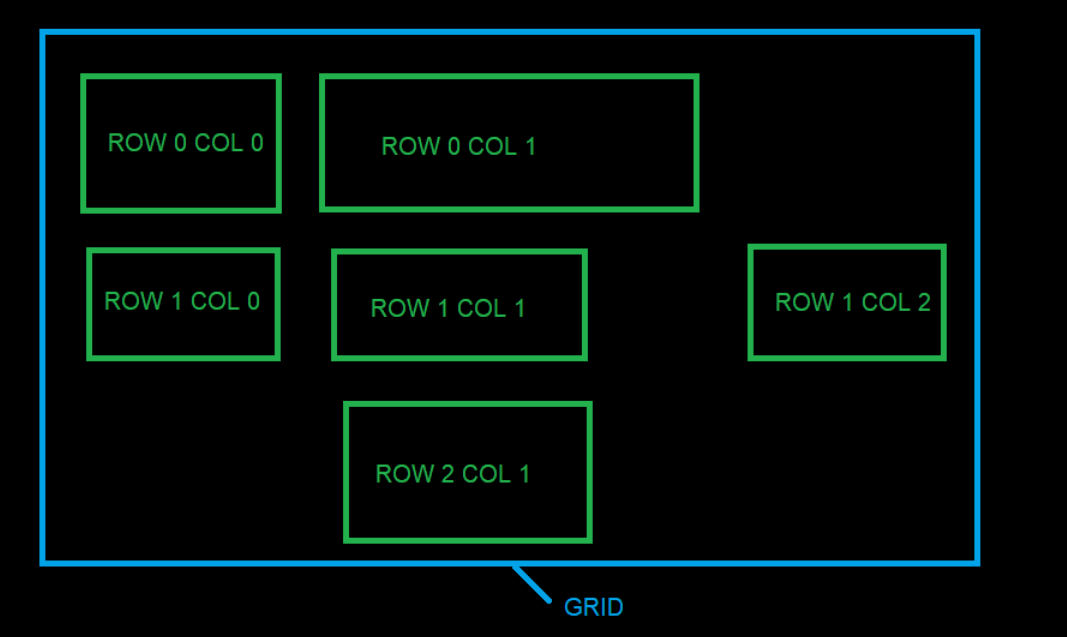

Grid

BlockType: grid BlockOptions: GridOptions

Container for arranging inner blocks in a grid.

The Grid calculates column widths and row heights based on inner block dimensions. Use GridCol and GridRow properties on inner blocks to place them. Only one block per cell.

Property	Type	Description
Rows	List<GridRowDefinition>	Definitions for grid rows.
Cols	List<GridColDefinition>	Definitions for grid columns.

GridRowDefinition

Property	Type	Description
Height	int	Height of the row.
IsStretchHeight	bool	If true, fills available vertical space (only one row can be true).

GridColDefinition

Property	Type	Description
Width	int	Width of the column.
IsStretchWidth	bool	If true, fills available horizontal space (only one column can be true).

Canvas

BlockType: canvas BlockOptions: CanvasOptions

A container that arranges inner blocks manually. Each inner block must define PositionX and PositionY to indicate its top-left coordinate. CanvasOptions currently contains no properties.

Table

BlockType: table BlockOptions: TableOptions

Generates blocks as a table based on a collection/list. The Items property is not used.

Property	Type	Description
ItemsSource	string	Data access expression for the collection/list.
HeaderTemplate	block	Template for table headers.
HeaderHeight	int	Height of the header row.
RowHeight	int	Height of data rows.
RowCount	int	Number of rows.
ColSpacing	int	Spacing between columns.
RowSpacing	int	Spacing between rows.
SeparatorSpace	int	Additional space if a column is a separator.
GroupSpaceReduction	int	Space reduction between columns with the same GroupId.
Columns	List<TableColumnDefinition>	Definitions for table columns.

Note: Sorting and filtering properties (SortMember, FilterMember, etc.) are identical to ItemStack.

TableColumnDefinition

Property	Type	Description
Width	int	Width of the column.
MarginLeft	int	Left margin.
MarginRight	int	Right margin.
IsStretchWidth	bool	If true, fills available horizontal space.
Header	string	Text for the header template (will be replace text property of any text block of header template).
RenderIf	bool	Conditional rendering flag.
Template	block	Template for each item in the column.
IsSeparator	bool	Indicates if the column is a separator.
GroupId	int	Groups columns to adjust spacing (same group Id (>0) can be set for several column to bring them closer to each other in the column space).
MultiColumnHeadersSource	string	Data expression (only for collection/list) for multicolumn headers.
MultiColumnItemsSource	string	Data expression (only for collection/list) for multicolumn items.
MultiColumnHeaderTemplate	block	Template for multicolumn items.

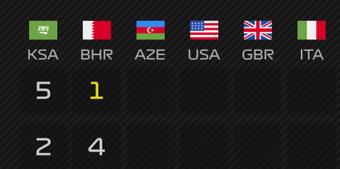

Multicolumn

A feature for expanding one column into multiple columns.

Shape

BlockType: shape BlockOptions: ShapeOptions

Displays a simple geometric figure.

Property	Type	Description
ShapeType	enum	Options: rectangle, ellipse.
Fill	color	Fill color.
Rotation	int	Rotates the shape clockwise around its center.

Component

BlockType: component BlockOptions: ComponentOptions

Used to reuse complex blocks across different places in a layer or layout.

Property	Type	Description
Vars	Dictionary<string, object>	Variables passed to the component.

ColorizeOptions

BlockOptions: ColorizeOptions

Describes how the background or final image of a block should be colored.

Property	Type	Description
Enabled	bool	Enables colorization.
Color	color	Target color.
BlendPercentage	int	Blend percentage (0-100).
AlphaCompositionMode	enum	Composition mode. Possible values: SrcOver, Src, SrcAtop, SrcIn, SrcOut, Dest, DestAtop, DestOver, DestIn, DestOut, Clear, Xor. Can be empty/null. Default: SrcATop.
ColorBlendingMode	enum	Blending mode. Possible values: Normal, Multiply, Add, Subtract, Screen, Darken, Lighten, Overlay, HardLight. Can be empty/null. Default: Screen.
