Block

Rendering is based on a hierarchy of block objects. The following types of blocks are available:

• stack (container)
• itemstack (container)
• dock (container)
• grid (container)
• table (container)
• canvas (container)
• image
• text
• shape
• component
• style

Block containers may include other blocks (usually in the Items property). To create markup, you must describe the blocks and their properties.

A layer always starts with a description of the BlockRoot:

Block Properties

Standard JSON properties describe the block.

Data Types

Name	Description	Example
string	String value.	"text"
int	Numeric value.	10
bool	Boolean value (true, false).	false
color	Color value (hex code).	"#FF15AB18"
List<object>	Array of objects.	[{ "BlockType": "image" }, { "BlockType": "text" }]
Dictionary<string, object>	Key-value pairs.	"Key1": "Value1", "Key2": "Value2"
object	Universal type (can be string, bool, int, etc).	-

Common Properties

The following properties apply to most block types.

Property	Type	Description
BlockType	string	The type of the block.
Name	string	Unique name of the block.
RenderIf	bool	Condition to render the block.
RenderForce	bool	Forces rendering even if conditions are not met.
Opacity	int	Opacity level (0-100).
Width	int / string	Width in pixels. Supports string values like "*" or "auto".
Height	int / string	Height in pixels. Supports string values like "*" or "auto".
MinWidth	int	Minimum width in pixels.
MinHeight	int	Minimum height in pixels.
MaxWidth	int	Maximum width in pixels.
MaxHeight	int	Maximum height in pixels.
WidthPercent	int	Percentage (0-100) of the parent block's available width. 100 equals StretchWidth: true.
HeightPercent	int	Percentage (0-100) of the parent block's available height. 100 equals StretchHeight: true.
StretchWidth	bool	Fill all available width.
StretchHeight	bool	Fill all available height.
HorizontalAlignment	enum	Alignment options: Left, Right, Center.
VerticalAlignment	enum	Alignment options: Top, Center, Bottom.
Margin	string	Margin values. Single ("4"), two ("4, 8"), or four ("4, 8, 12, 16") values supported.
MarginLeft	int	Left margin in pixels.
MarginTop	int	Top margin in pixels.
MarginRight	int	Right margin in pixels.
MarginBottom	int	Bottom margin in pixels.
Padding	string	Padding values (similar to Margin).
PaddingLeft	int	Left padding in pixels.
PaddingTop	int	Top padding in pixels.
PaddingRight	int	Right padding in pixels.
PaddingBottom	int	Bottom padding in pixels.
Background	color	Background color.
BackgroundImage	string	Path to the background image.
UseBackgroundCrop	bool	Whether the background image should be cropped.
BackgroundImageOpacity	int	Opacity of the background image (0-100).
GridRow	int	Row number (if the block is a child of a grid).
GridCol	int	Column number (if the block is a child of a grid).
PositionX	int	X position (if the block is a child of a canvas).
PositionY	int	Y position (if the block is a child of a canvas).
PositionZ	int	Z-index for child blocks of stack, canvas, and dock (limited support).
Colorize	ColorizeOptions	Colorizes the final block image using a specific color.
ColorizeBackground	ColorizeOptions	Colorizes the background of the block using a specific color.
Triggers	List<TriggerItem>	Triggers for properties.
Source	object	Data source (text, image, or collection path).
Vars	Dictionary	Local block variables. Inherited hierarchically and overrides higher-level variables.
Items	List<Block>	Array of nested blocks (available for block containers).
FontName	string	Font name (text block only). Substituted into TextOptions.
FontSize	string	Font size (text block only). Substituted into TextOptions.
Foreground	color	Text color (text block only). Substituted into TextOptions.
Orientation	enum	Horizontal or Vertical. Available for stack, dock, itemstack.
Spacing	int	Space between nested blocks. Available for stack, dock, itemstack.
Components	List<Block>	Defines components available for all nested blocks.
Styles	List<Block>	Defines styles available for all nested blocks.

Property Notes

• Items: Applies to stack, dock, grid, and canvas.
• Common Properties: For convenience, the most common properties (FontName, Orientation, etc) that are located in block options are placed in the block itself too. You can use them both ways, but the block properties have higher priority than the option properties.
• Source: Duplicates specific properties (like ImagePath, Text) and has higher priority.
• Dimensions: Width and Height default to 0, meaning the engine calculates size based on content. Use "*" to fill available space.

Examples

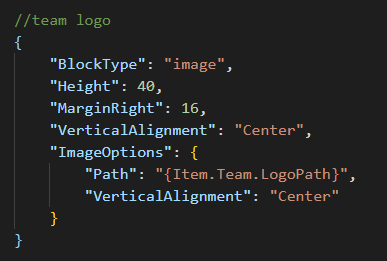

An example of a simple block description:

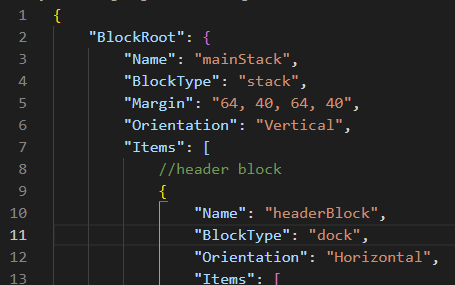

A layer can contain only one root block, specified as an object for the BlockRoot property:

It is recommended to choose stack, dock, or grid as the root block.
